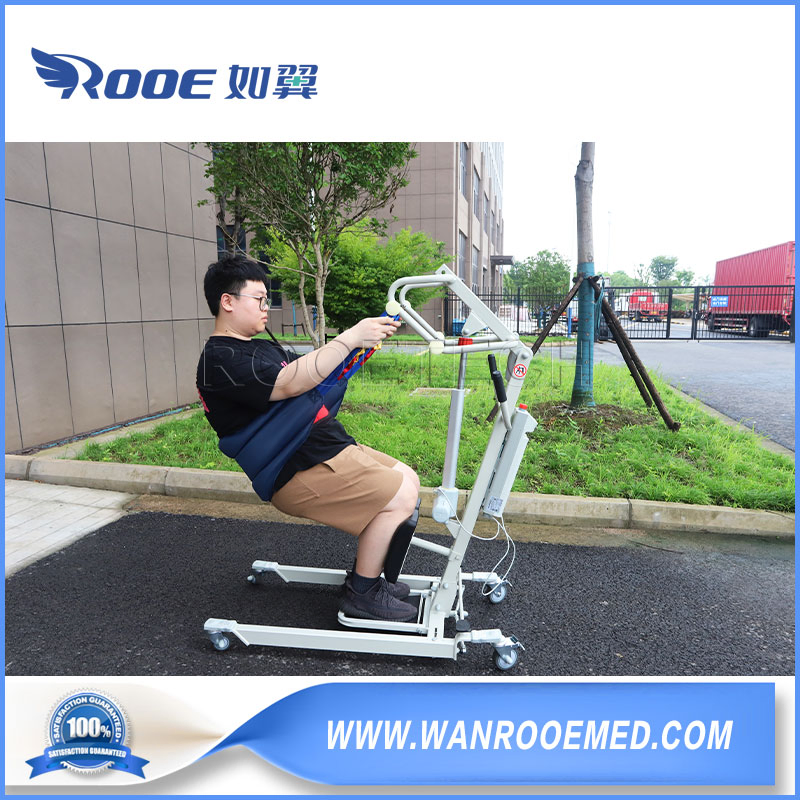

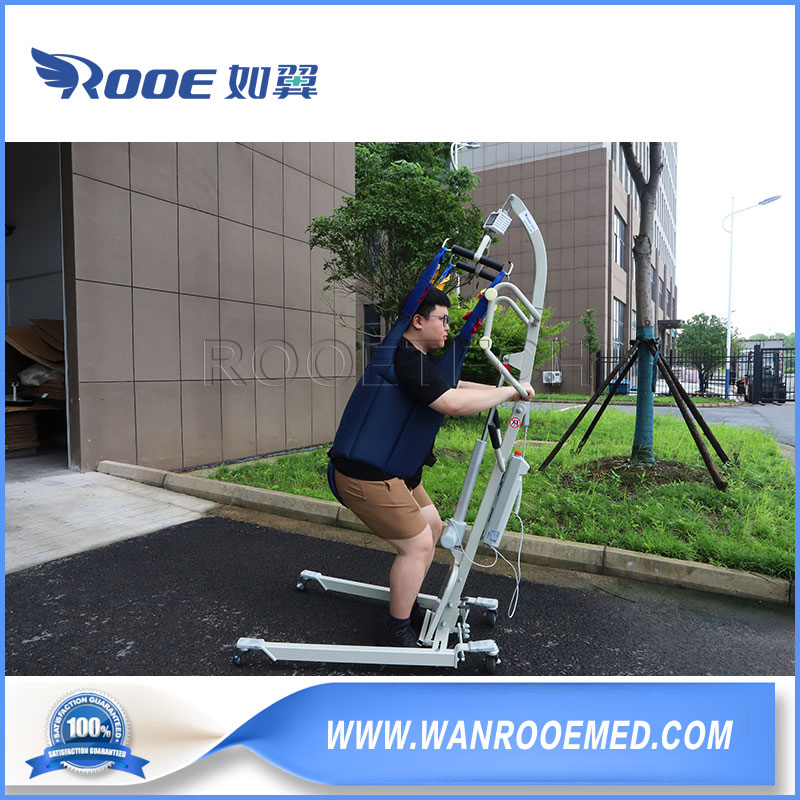

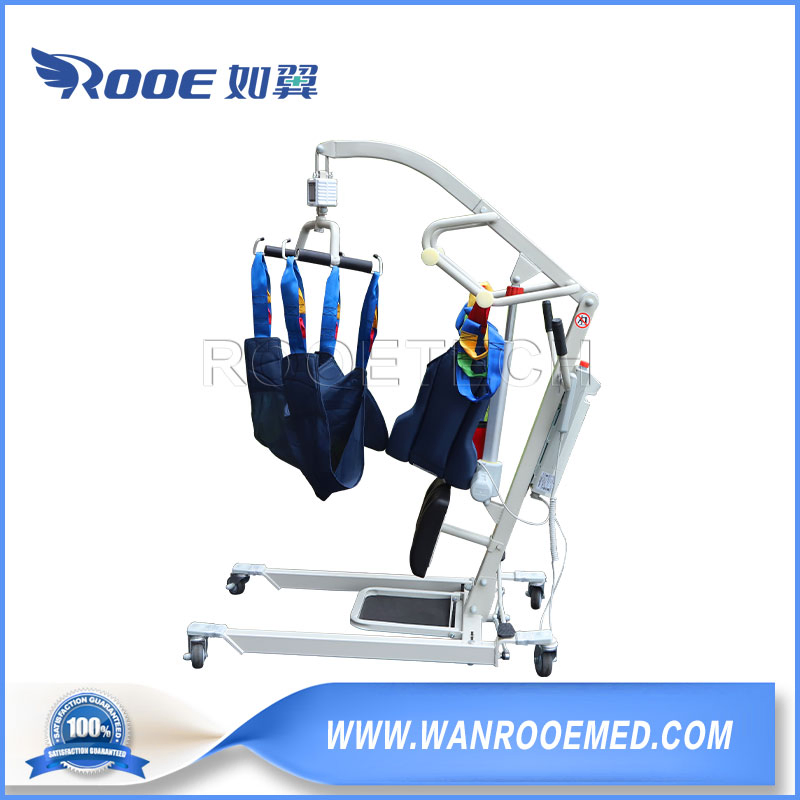

Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
1 / 5
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed
Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed

Dg203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift for Wheelchair and Bed

Customization: Available
Type: Patient Lift
Function: Improve Blood Circulation
Send Inquiry

Product Description

Basic Information

Model NO.:DG203
Certification:CE, FDA, ISO13485
Group:Adult
Weight Capacity:150kg (200kgs Optional)
Display:Without LCD Display
Casters:3" Front / 4" Rear with Brakes
Input Voltage:220V 50Hz
Production Cap.:200 Sets/Month

Product Description

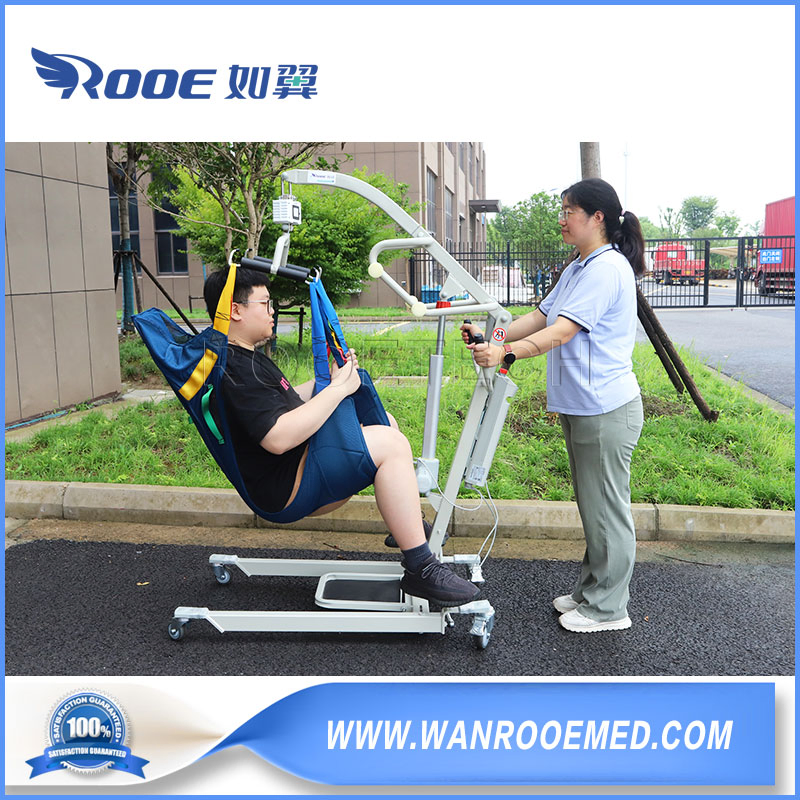

DG203 Elderly Full Body Stand Aid Battery Power Patient Transfer Lift

Patient Transfer Lift
  • 🏗️
    Heavy Duty Construction: Main frame made of high-strength thickened rigid tube with powder-coated surface, ensuring stability and easy cleaning.
  • ↕️
    Adjustable Height: Column and arm can be adjusted to reach the desired elevation from the ground.
  • 📱
    Simple Remote Control: Intuitive handle with simple up/down buttons, designed for easy operation by elderly users.
  • 🚨
    Dual Safety Systems: Includes an emergency stop button and an emergency manual descent device for power failures.
  • 🔄
    360° Rotation: The hanger rotates fully, allowing caregivers to position the patient comfortably and flexibly.
  • 🦵
    Ergonomic Support: Features an adjustable knee unit and multi-functional handrails for better grip and safety.
  • 🚶
    Gait Training: Equipped with foldable footrests to assist in mobility exercises.
  • 📏
    Versatile Base: Pedal-operated adjustable base width to fit around wheelchairs and beds.
Optional Features:
• 200kg High-load capacity upgrade
• Specialized slings for various applications
• Integrated electronic scale

Main Parameters

Specification Details
ModelDG203
Arm / Leg Length990mm / 1190mm
Overall Width590mm
Base Open Width860mm
Hook Height Range720 - 1730mm
Weight Capacity150kg (200kg Optional)
MaterialPowder Coated Strong Steel
Motor Voltage24V
Casters3" Front / 4" Rear with Brakes

Detailed Photos

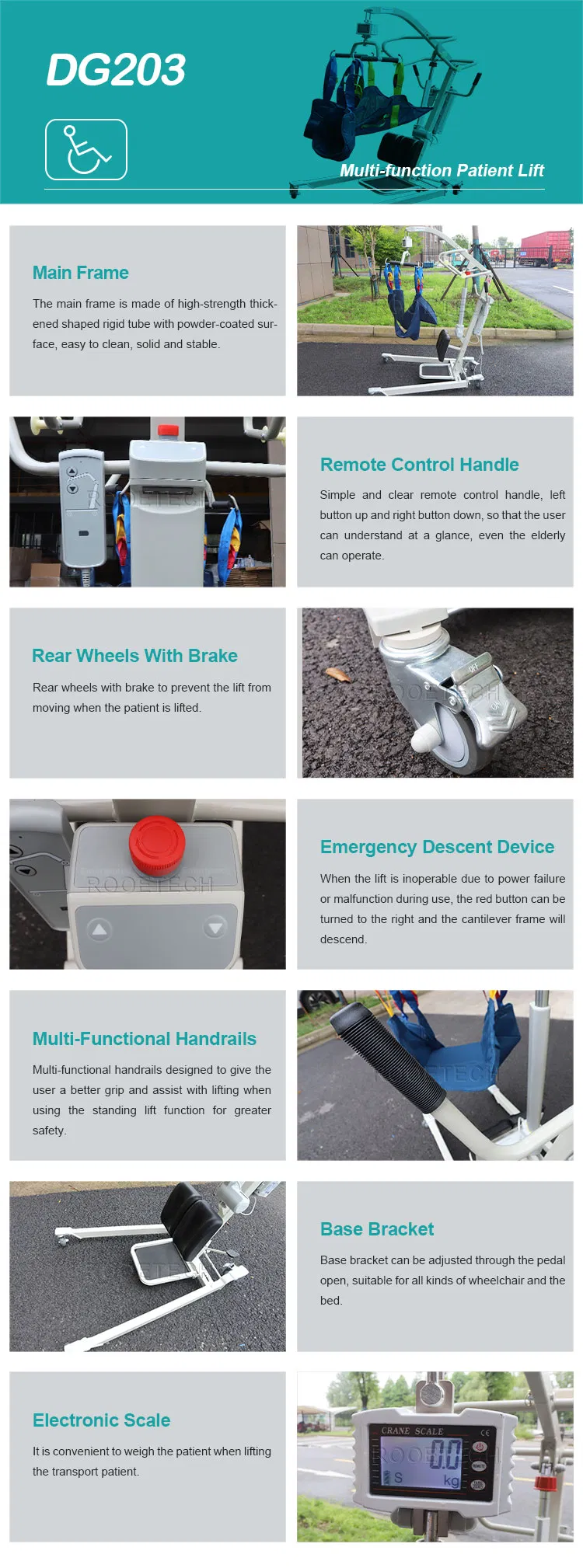

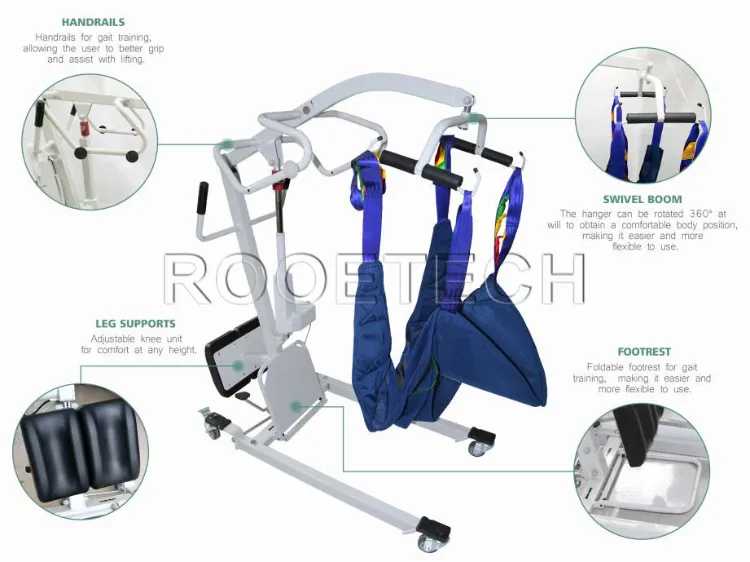

Detail 1 Detail 2

Application Scenarios

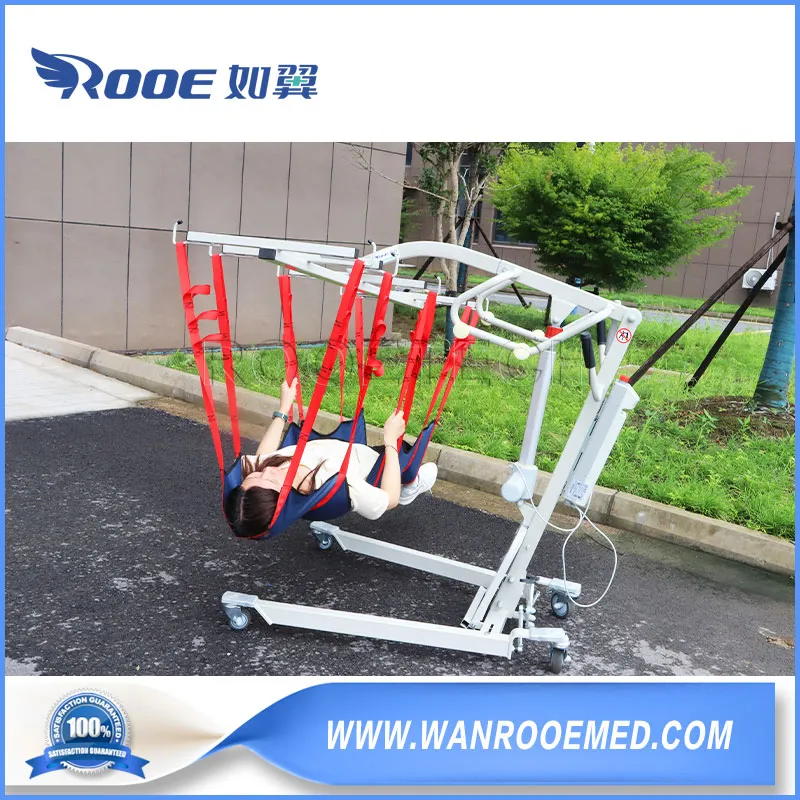

App 1 App 2 App 3 App 4

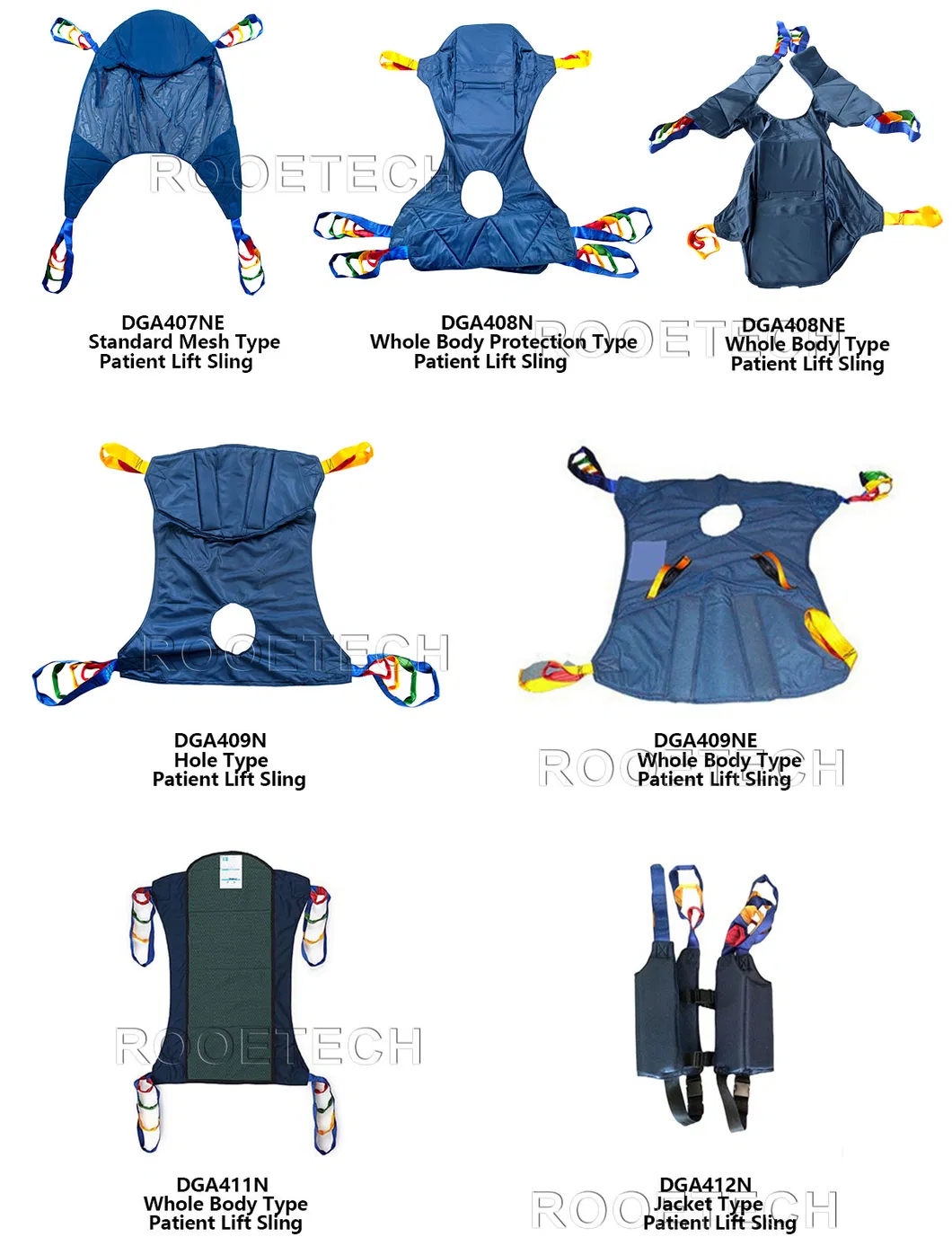

Usage Guide

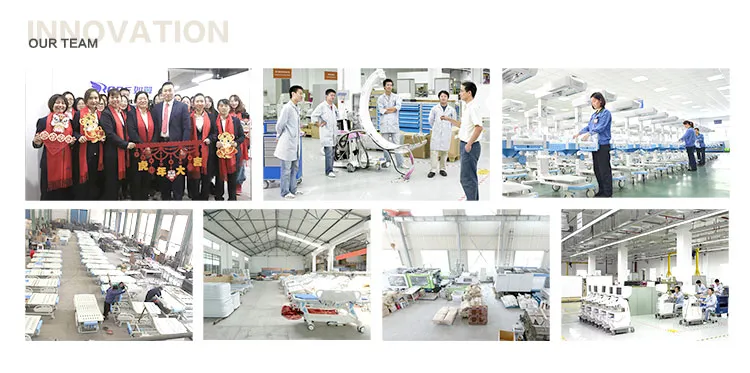

Production Display

Production Manufacturing

Frequently Asked Questions

Q1: What is the maximum weight the DG203 can lift? The standard model supports up to 150kg, with an optional configuration available for up to 200kg.
Q2: How does the emergency descent function work? In case of power failure, a red emergency button can be rotated to the right to manually lower the cantilever arm safely.
Q3: Can this lift be used with different types of wheelchairs? Yes, the base bracket width is adjustable via a foot pedal, making it compatible with various wheelchair widths and bed frames.
Q4: Does the lift provide any low-battery alerts? Yes, the system includes a low battery warning beep to notify caregivers when it is time to recharge.
Q5: Is the DG203 suitable for rehabilitation or gait training? Absolutely. It features foldable footrests and multi-functional handrails specifically designed to assist with standing and gait training.
Q6: How much rotation does the patient hanger allow? The hanger offers a full 360° rotation, allowing for precise and comfortable positioning of the patient during transfer.
