1600kg Hospital Bed Elevator Lift for Patient and Medical Transport

1 / 5

1600kg Hospital Bed Elevator Lift for Patient and Medical Transport

Customization:	Available
Warranty:	18 Months
Type:	Wellhole

Send Inquiry

Product Description

Basic Specifications

Model NO.

FUJI-E

Load Capacity

3000kgs

Speed

0.5 M/S

Drive Mode

Open & Close Type

Automatic

Lift Mechanism

Lift Chain

Guide Rail

T Guide

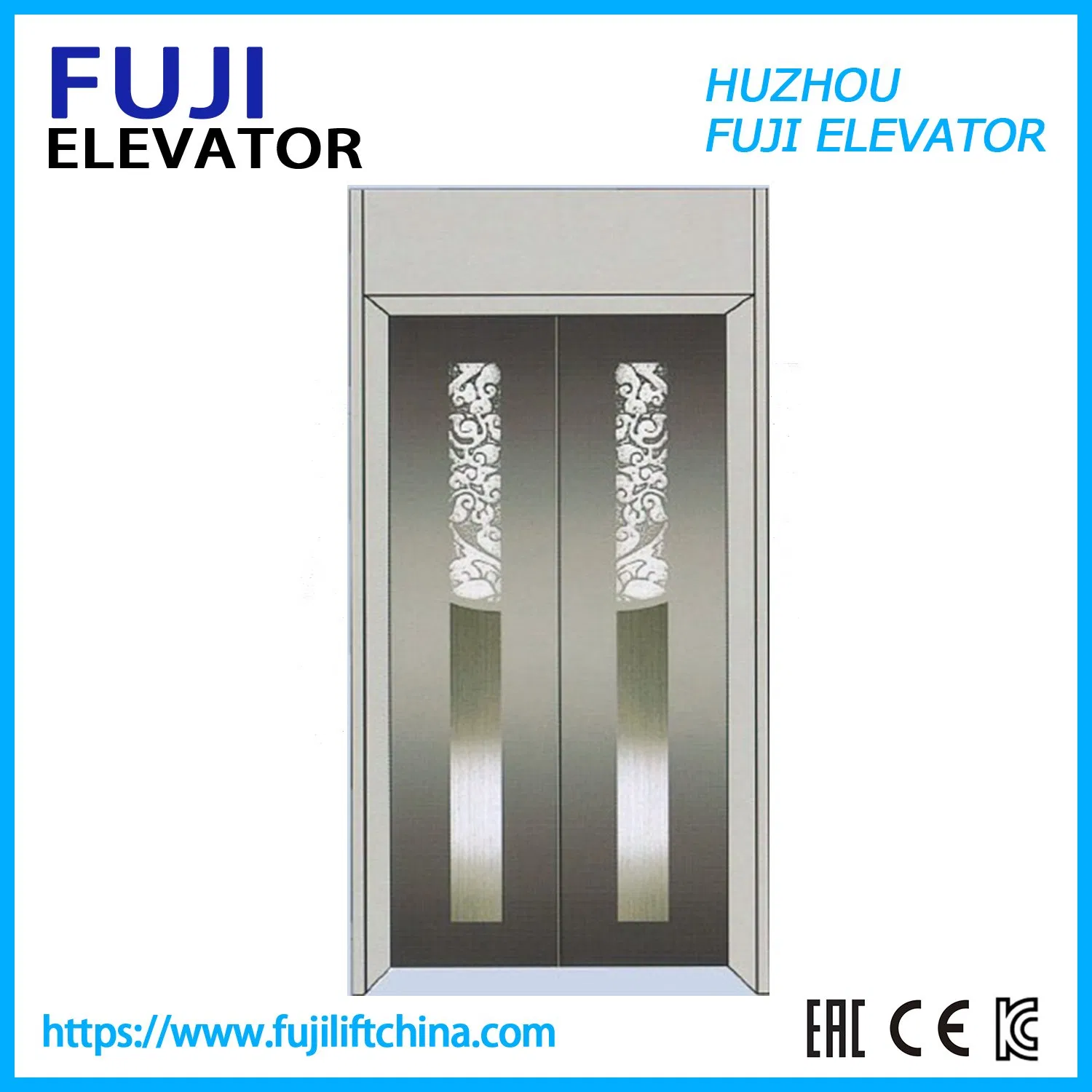

Elevator Door

Center Opening Door

Price Range

$9500-12000/Unit

Origin

China

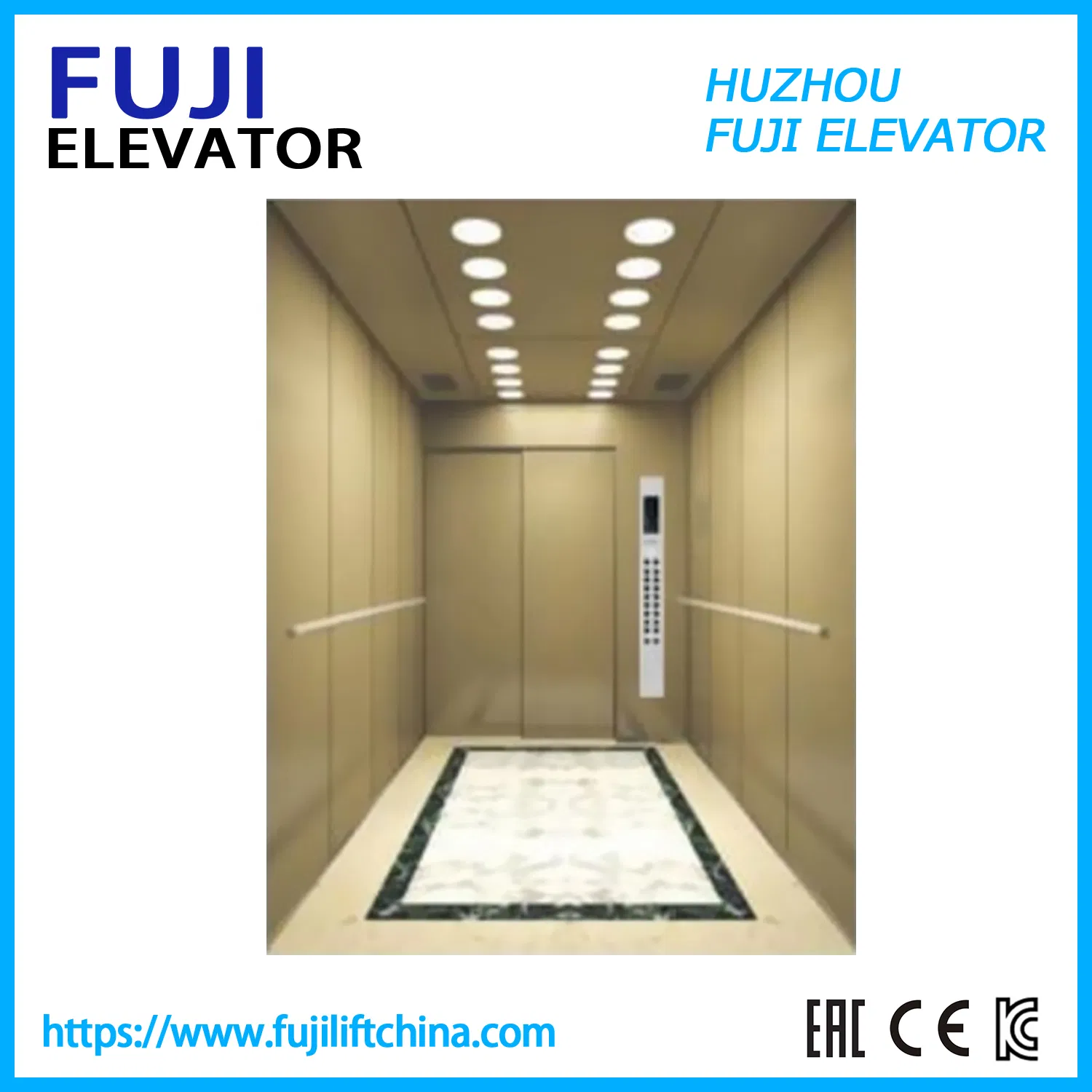

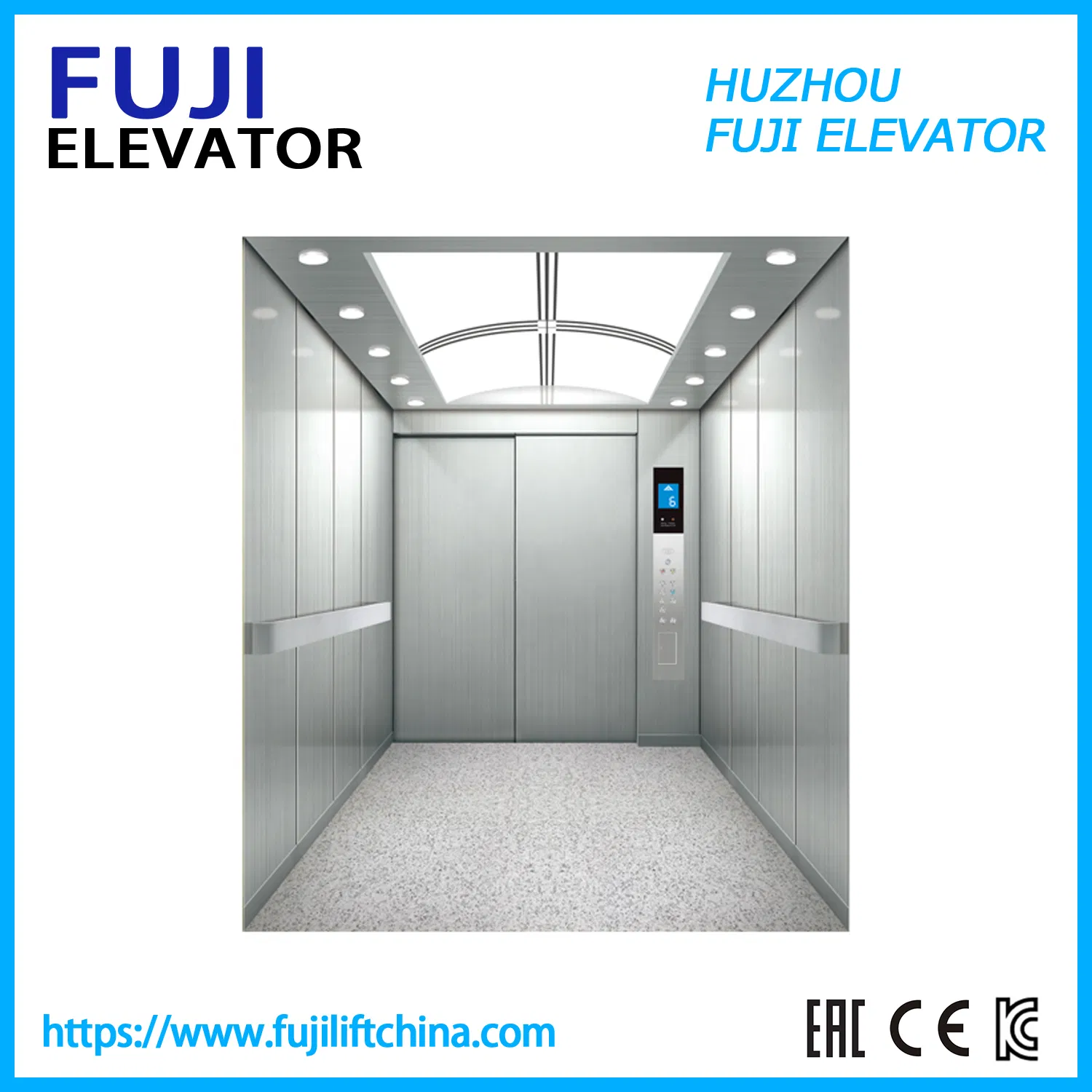

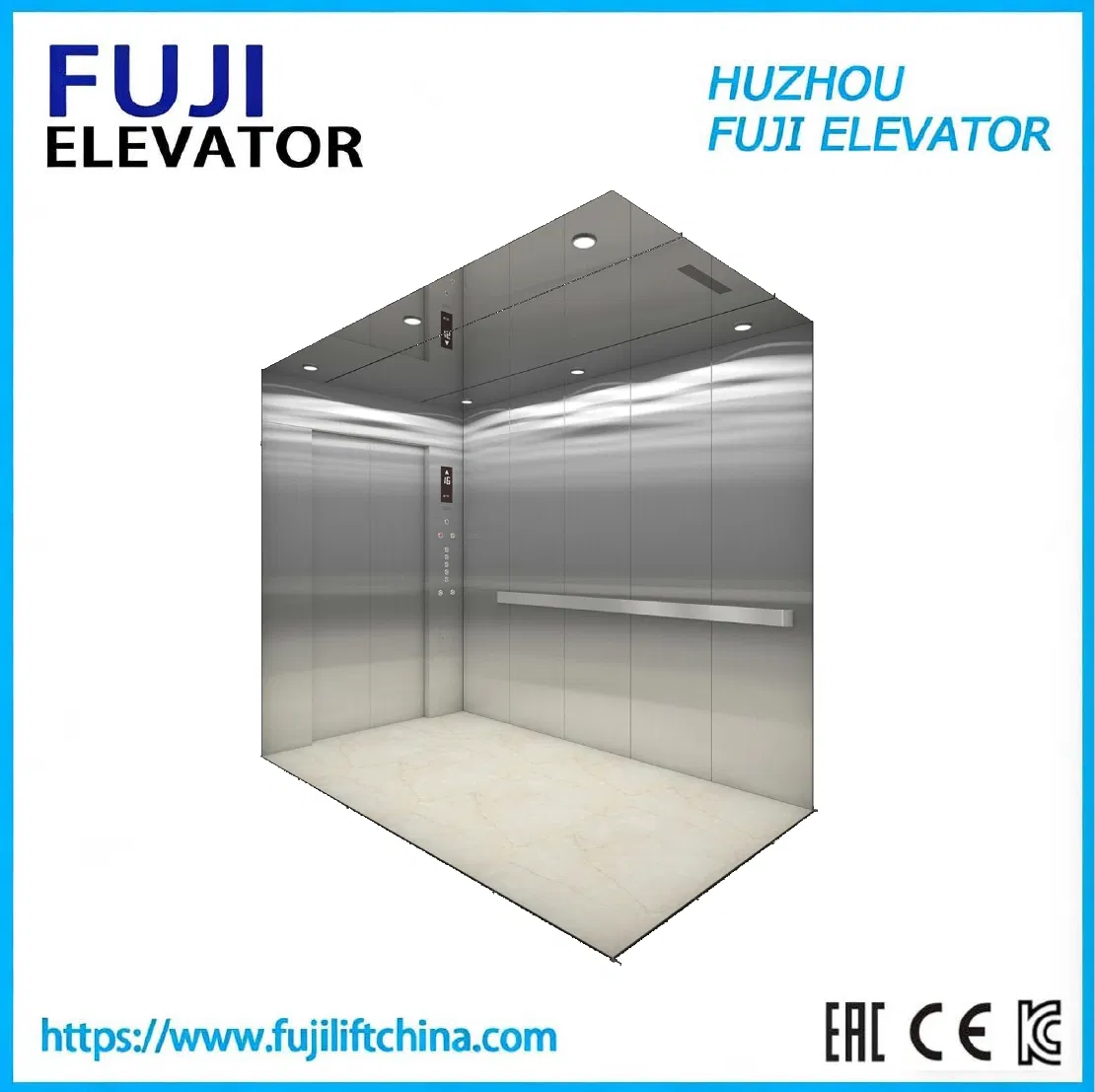

Hospital Bed Elevator Overview

The Hospital Bed Elevator is specially designed for medical and healthcare buildings, providing reliable and efficient vertical transportation for patients, hospital beds, stretchers, and medical equipment. With a spacious cabin design and smooth VVVF control system, the elevator ensures quiet, stable, and comfortable operation, creating a safe transportation environment for patients and medical staff.

Product Core Selling Points

Smooth & Comfortable Operation

Adopts advanced VVVF control technology and permanent magnet synchronous gearless traction machine to ensure smooth acceleration and deceleration.

Energy Saving Design

Machine room-less design saves building space and reduces energy consumption through optimized engineering.

Reliable Safety System

Equipped with multiple protection systems including overload protection, light curtain door protection, and emergency rescue devices.

Flexible Customization

Various cabin materials, door designs, and control panels are available according to specific medical project requirements.

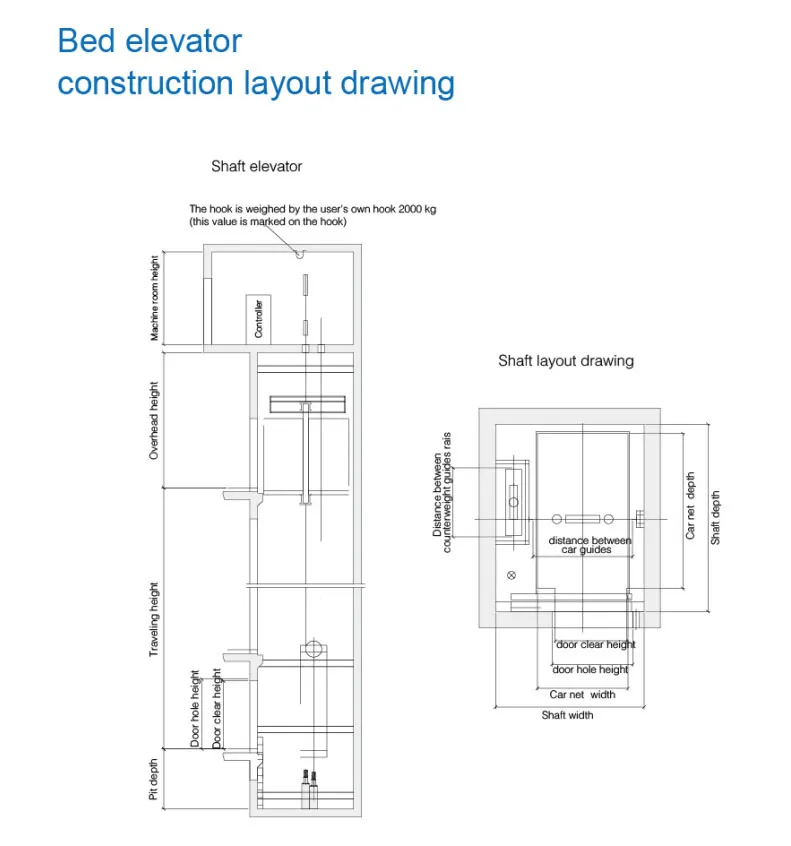

Hospital Elevator Parameters

Persons	Rated Capacity (kg)	Speed (m/s)	Net Car Size (CW×CD×DH)	Door Size (DW×DH)	Shaft Size (HW×HD)
21	1600	1.0 - 2.5	1400×2400×2300	1100×2100	2550×2900
24	1600	1.0 - 2.0	1600×2400×2300	1200×2100	2750×2900
26	2000	1.0 - 2.0	1700×2400×2300	1200×2100	2850×2900

Key Features

1. Safe and Reliable: Prioritizes safety for all passengers, ensuring stable delivery to every destination floor.
2. Spatial Configurability: New machine room layouts increase building space availability and efficiency.
3. Environmental Protection: Uses gearless permanent magnet synchronous motors to significantly reduce energy consumption.
4. High Performance: Stable control systems with capacities up to 1600kg-2000kg and intelligent dispatching.

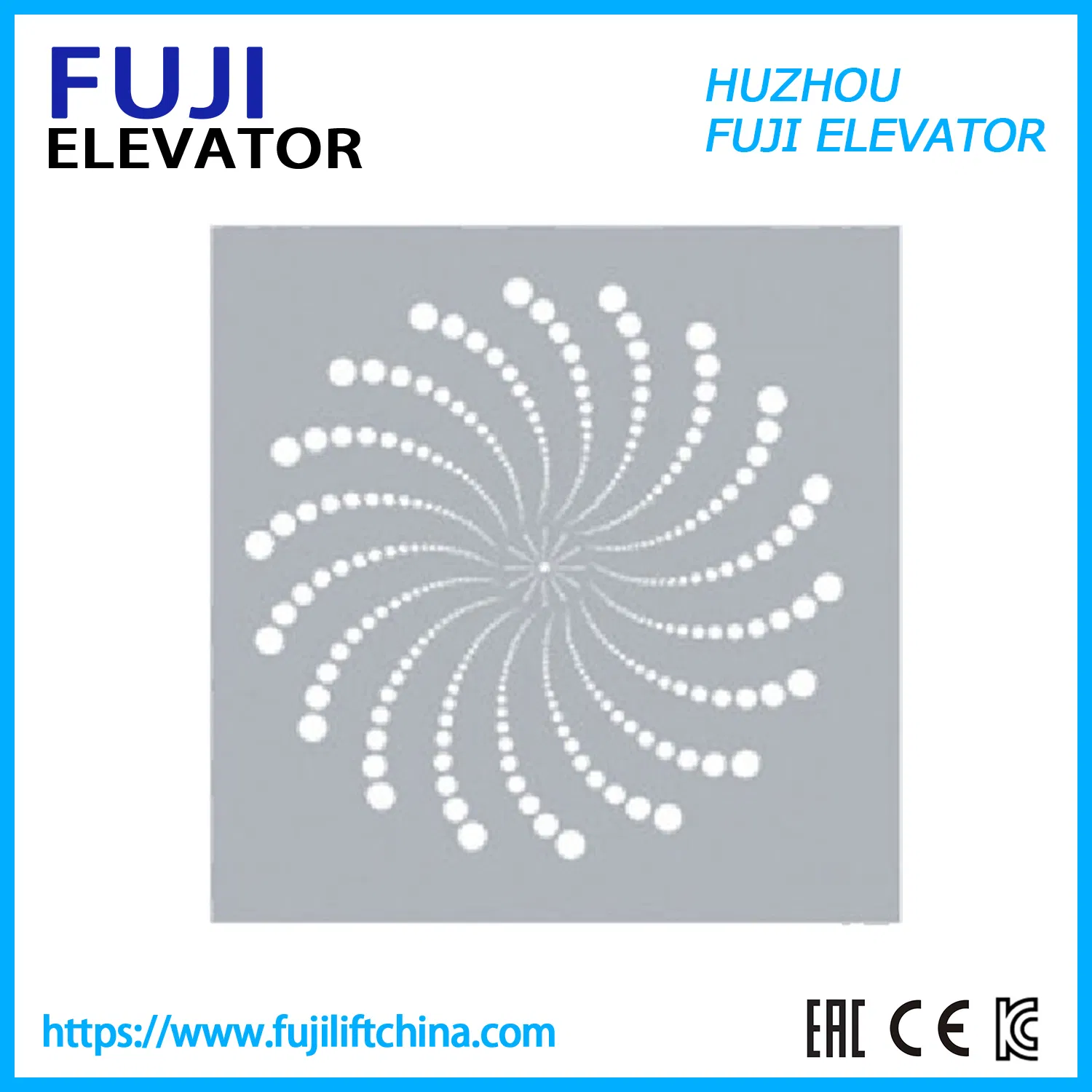

5. Custom Aesthetics: Options for finishes, designs, ceilings, and flooring materials to match facility decor.

Elevator Types & Decoration

Frequently Asked Questions

Q1: What makes a hospital bed elevator different from a standard passenger elevator?

Hospital bed elevators feature deeper cabins to accommodate stretchers and medical beds, along with specialized VVVF control for extra-smooth movement to protect sensitive patients.

Q2: Can the elevator operate during a power failure?

Yes, these elevators are equipped with emergency rescue devices and can be integrated with hospital backup power systems to ensure patient safety.

Q3: What is the maximum weight capacity available?

Standard models support up to 1600kg or 2000kg, but custom heavy-duty configurations up to 3000kg are available for specialized medical equipment transport.

Q4: Does the design save on building space?

Yes, the machine room-less (MRL) design and compact gearless motors allow for more efficient use of architectural space compared to traditional elevators.

Q5: What kind of after-sales support is provided for installation?

Detailed installation manuals and remote technical guidance for commissioning are provided. For complex projects, on-site engineering guidance can be arranged.

Q6: Are the cabin interiors customizable?

Absolutely. Customers can select from various wall finishes, antibacterial materials, lighting designs, and flooring options to meet hygiene and aesthetic standards.
