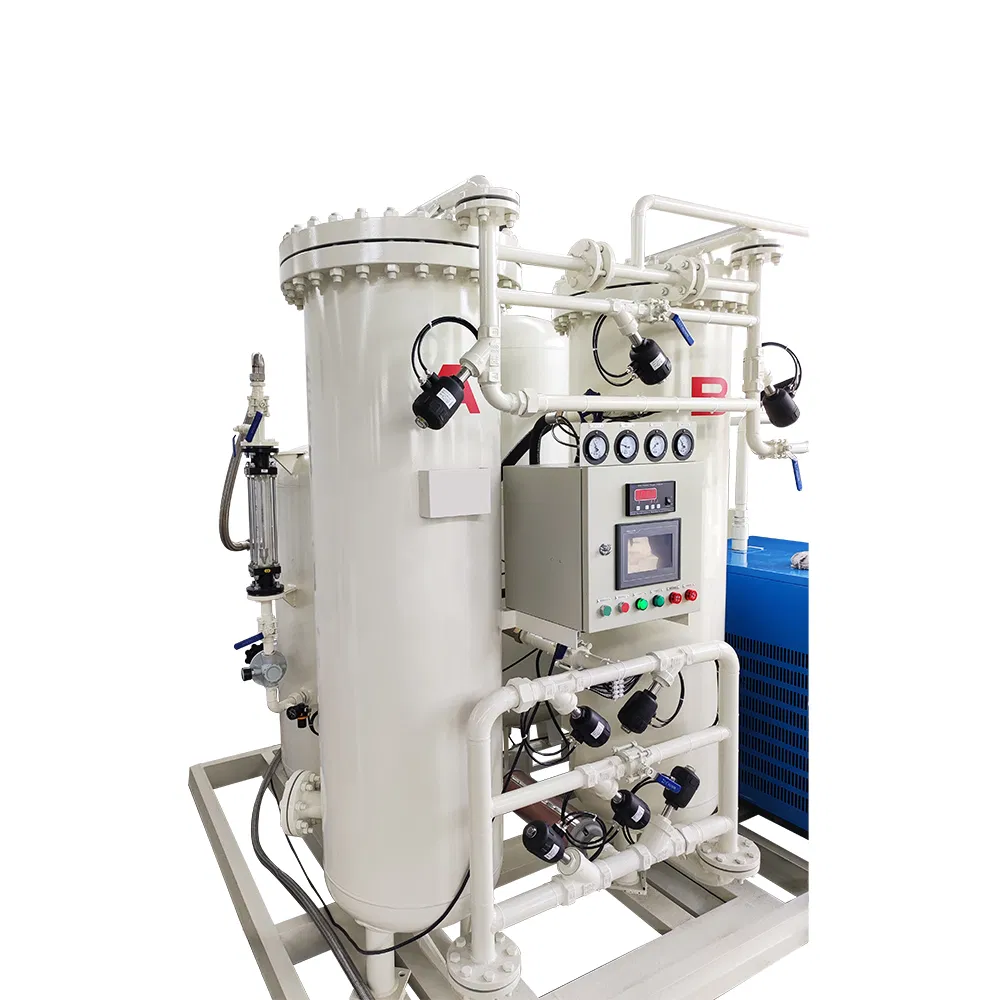

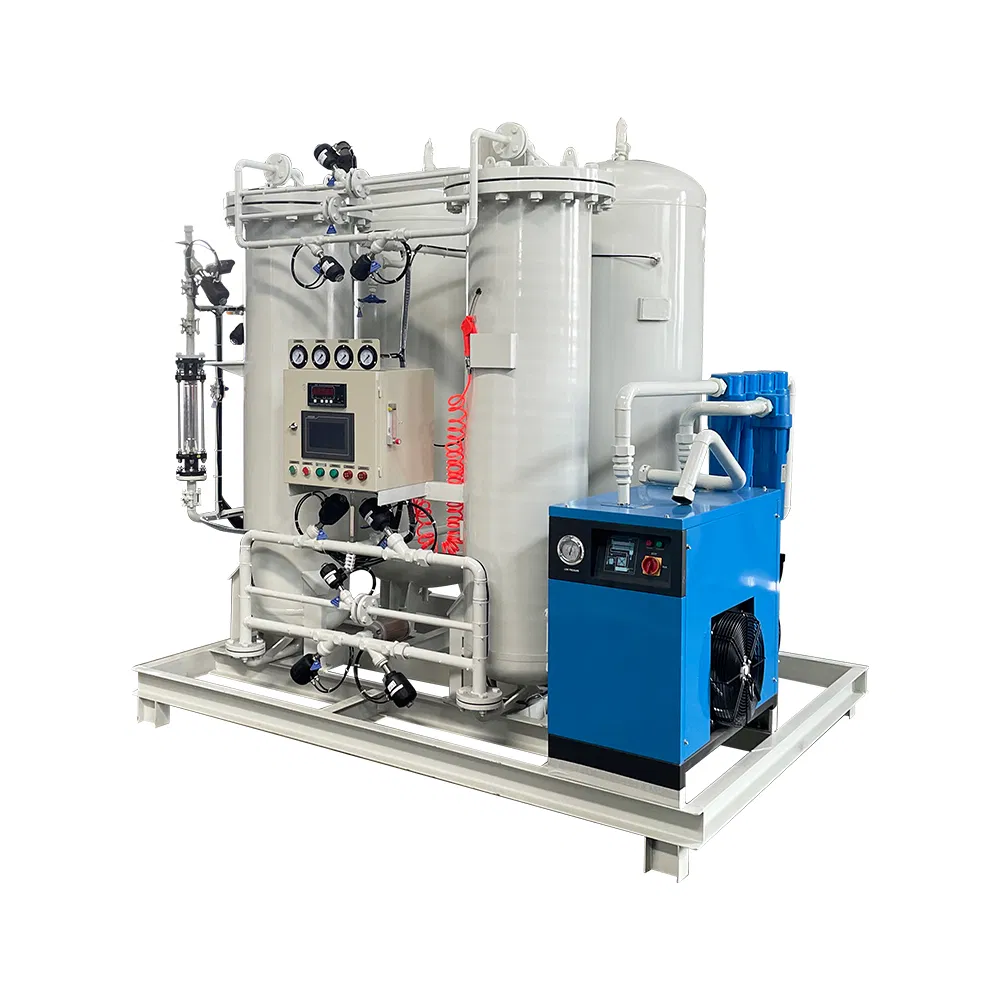

Safety and Quality Assurance 30m3/Min Medical Oxygen Concentrator

1 / 5

Safety and Quality Assurance 30m3/Min Medical Oxygen Concentrator

Customization:	Available
Application:	Medical Institution
Scale:	Medium

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

HBF093-30

Capacity

4~500cylinders Per Day

Flow Rate

1~120nm3/H

Pressure

4~200bar

OEM

Acceptable

Origin

Guangdong, China

HS Code

84196019

Production Capacity

5000 Case/Cases Per Month

⚙️ Product Description

Model	Gas production	Air consumption	Imported	Output	Dimension (mm)
HBF093-1	1	0.2	DN15	DN15	8006501720
HBF093-2	2	0.4	DN15	DN15	9509501500
HBF093-3	3	0.6	DN15	DN15	10509001865
HBF093-5	5	1	DN20	DN15	14509001825
HBF093-10	10	2	DN32	DN15	14509001825
HBF093-15	15	3	DN40	DN25	18009501940
HBF093-20	20	4	DN40	DN25	185010252100
HBF093-25	25	5	DN50	DN25	200010502210
HBF093-30	30	6	DN50	DN25	200010502530
HBF093-50	50	10	DN65	DN25	220012502720
HBF093-60	60	12	DN65	DN40	225013002850
HBF093-80	80	16	DN80	DN40	235015503060
HBF093-100	100	20	DN100	DN40	250016003330
HBF093-120	120	24	DN100	DN40	260017003670
HBF093-150	150	30	DN150	DN40	470015002980
HBF093-180	180	36	DN200	DN40	470016003370
HBF093-200	200	40	DN200	DN40	500016003330
HBF093-240	240	48	DN200	DN50	520017003670
HBF093-300	300	60	DN250	DN50	590016004520

💡 Working Principle

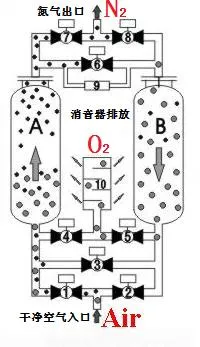

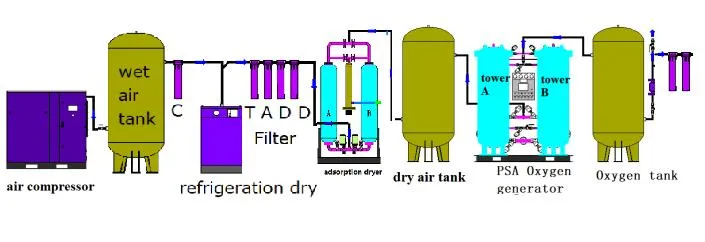

Pressure swing adsorption (PSA) oxygen generator uses molecular sieve as adsorbent. The principle of pressure adsorption and depressurization desorption is adopted to adsorb nitrogen from air, then produce oxygen gas.

✅ Key Advantages

A unique lotus air distributor is installed at the bottom of the adsorber, which avoids the impact of high-pressure air flow on the molecular sieve and prolongs the service life of the molecular sieve. At the same time, the gas diffusion is uniform, which greatly improves the service efficiency of the molecular sieve and reduces the energy consumption.

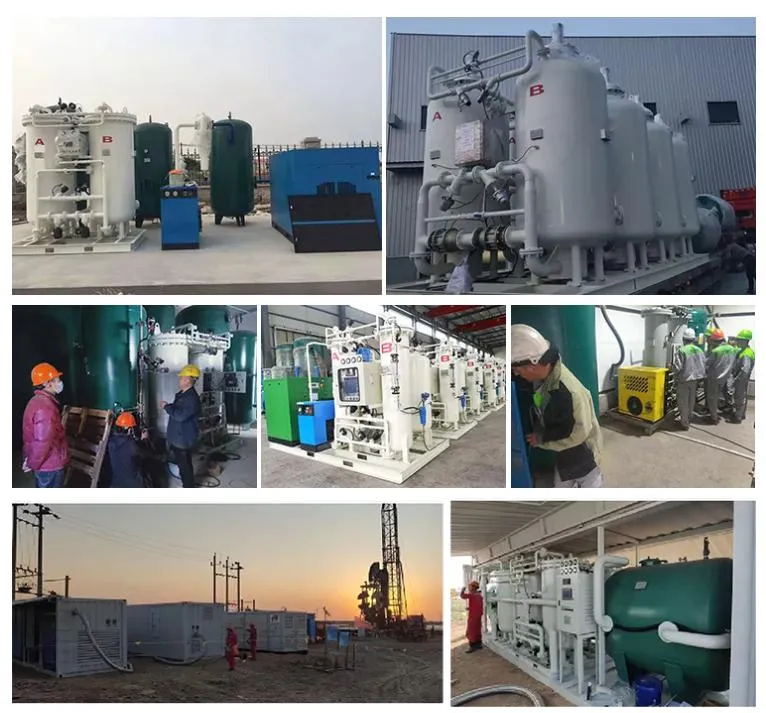

Rich experience in Medical industry
Export hundreds of plants to Hospital

📜 Certifications

❓ Frequently Asked Questions

1. What is the principle behind the PSA oxygen generator?

The Pressure Swing Adsorption (PSA) technology uses a molecular sieve to adsorb nitrogen from compressed air under pressure, allowing pure oxygen to be collected and delivered.

2. How does the lotus air distributor improve performance?

The unique lotus distributor ensures uniform gas diffusion and prevents high-pressure air from directly impacting the molecular sieve, which significantly extends its service life and reduces energy consumption.

3. What is the typical purity level of oxygen produced?

Our medical-grade PSA oxygen generators are designed to produce high-purity oxygen suitable for hospital and medical applications.

4. Can the system be customized for specific flow rates?

Yes, we offer a wide range of models with flow rates from 1nm3/H up to 120nm3/H, and OEM services are acceptable to meet specific project requirements.

5. What are the maintenance requirements for the molecular sieve?

Thanks to the protective air distributor and high-quality construction, the molecular sieve is highly durable. Regular maintenance involves checking filters and ensuring the input air quality is maintained.

6. Is this equipment suitable for cylinder filling?

Yes, depending on the configuration and capacity, our systems can fill between 4 to 500 cylinders per day.
